| Forty Nine P. Rare piece of gear. |
I recently picked up a Skyline Forty-Nine P. More of an electric organ than a synth, but worth a look nonetheless.
Presently it isn't working, but it should be back to full health soon. Once working, I'll upload a selection of pieces/performances to YouTube.
Numerous photos below of the innards (plus the service manual).
A stand was also included, but I haven't taken photos of it.
The instrument is quite big - I haven't measured it yet, but it looks almost exactly the same size as the Matrixbrute. Being 49-key, the size is going to be similar - but the main panel (metal) is bigger than I imagined it would be.
External
 |
| Rear panel. Note the broken/missing power switch. |
 |
| Stand attachment point; 5 possible angles |
 |
| Speaker on underside. The sound of these is usually pretty strong. |
 |
| Chord tonality selector. Note the faux leather finish. |
 |
| Voice switches |
 |
| Mixer |
 |
| Percussion section |

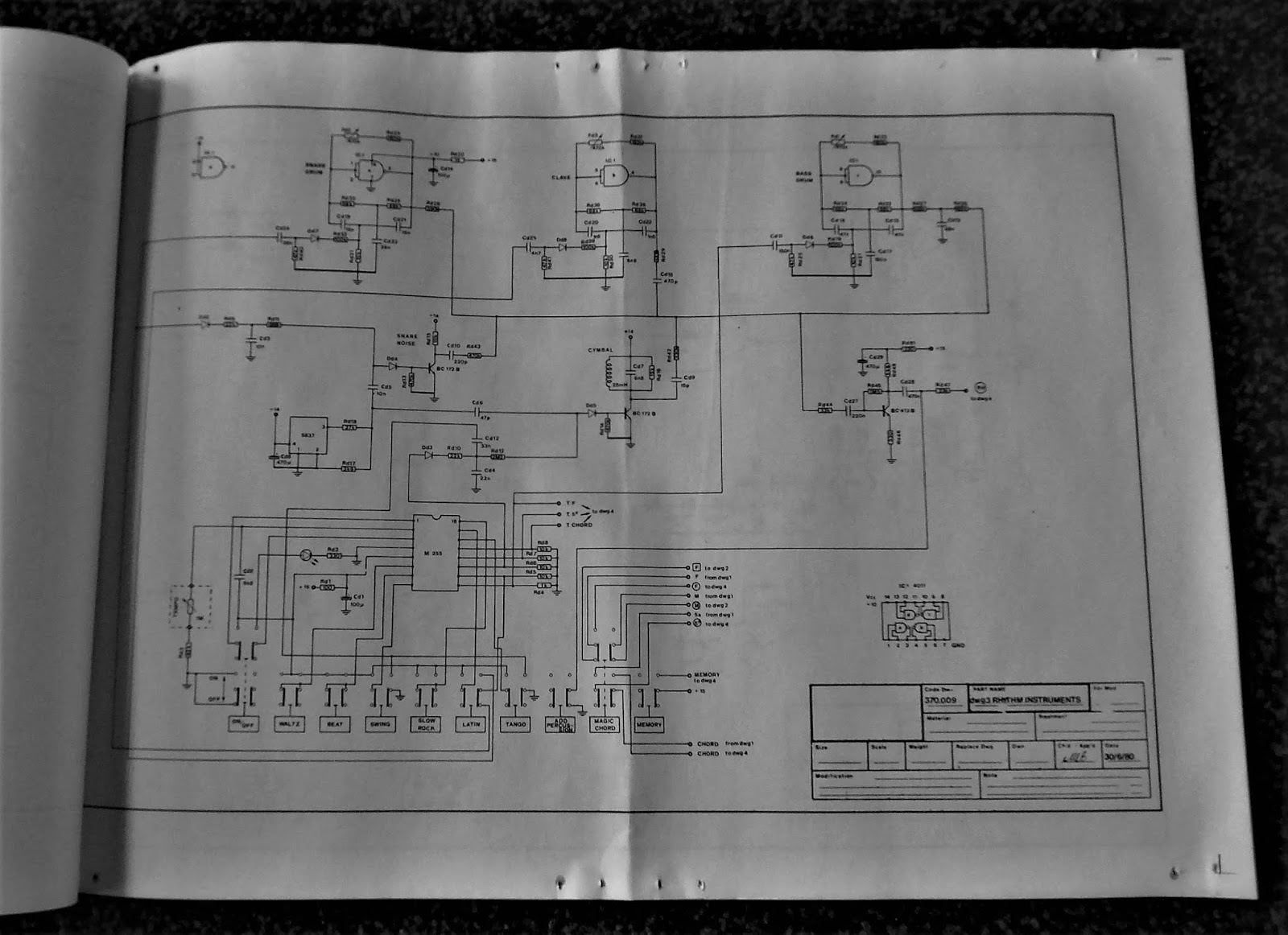

Under the Hood/Service Manual
The service manual was stapled inside, to the R of the speaker.
 |
| Almost 40 years old! Vintage gear. |
Internal
A few of the boards/components etc.
The tech spec/PDF's for most of the chips can be found online.
 |
| Power supply unit |
 |
| Percussion section |
 |
| Voice board |
 |
| Front of voice board |
 |

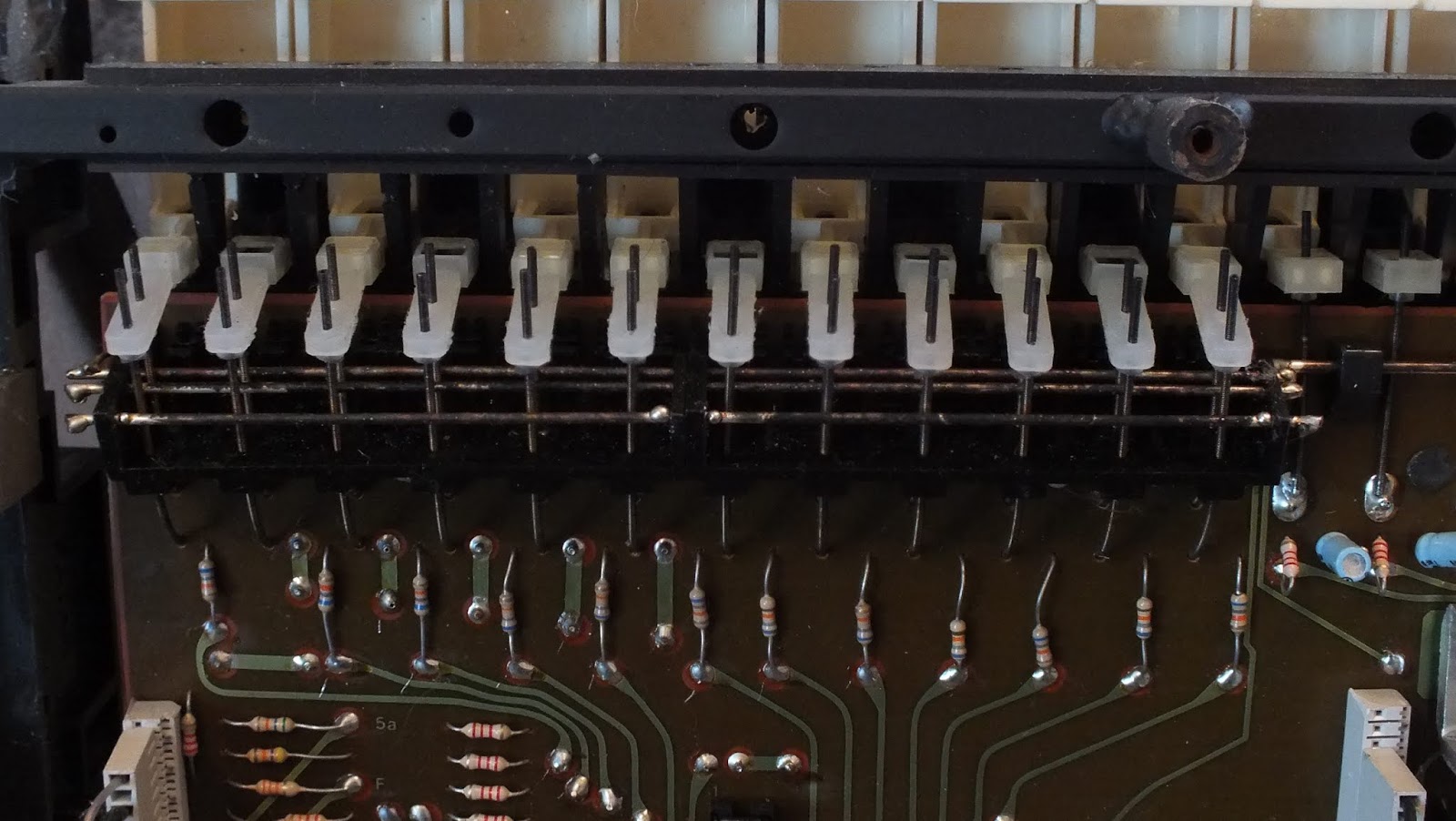

| Main board, underneath the keys |
 |

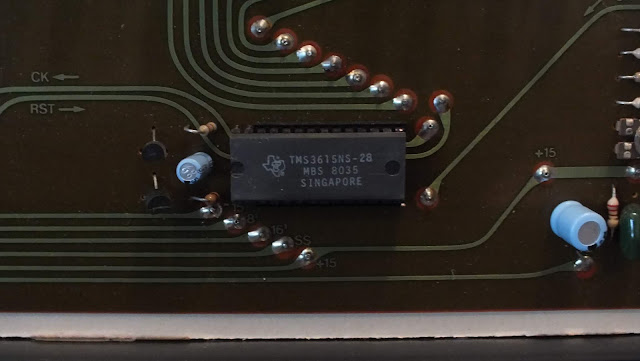

| Chips are also used on... Farfisa. Good chips! Circuit benders - note the Texas Instruments logo off to the R. |
 |
| More TI. Once the machine is up & running, I'll maybe look into some circuit bending on the Skyline. |
 |
| The main chips are possibly worth more than the value of the instrument |
All best
Kris
